OKBK/EK-38-2

OKBK/EK-38-2

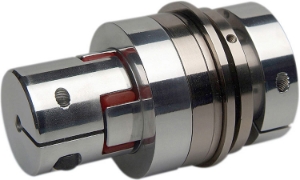

Torque Limiter with Collet Clamp, Polyurethane Insert, Steel Hubs, 150-300Nm Adjustable Overload Torque

Product specifications

Diameter [D]119
Dimension [L]160
Min. Bore Diameter [D1] H720
Max. Bore Diameter [D1] H745
Min. Bore Diameter [D2] H730
Max. Bore Diameter [D2] H757
Diameter [D3]80
Diameter [D4]110
Thread [M] DIN 912M12
Tightening Torque TA Nm [M]125
Thread [M1] DIN 912M8
Tightening Torque TA Nm [M1]25
Dimension [L1]67
Dimension [t]2
Max. Speed [rpm]4980
Mass [kg]5.7
Moment of Inertia J Kg cm²86
Torque (Nm)325
Adjustable Overload Torque TKN (Nm)150-300
Radial Misalignment ∆Kr (mm)0.12
Axial Misalignment ∆Ka (mm)1.8
Angular Misalignment ∆Kw (°)0.9°
