Shaft Couplings
Safety Couplings
OKBK/L : Inner Conical Hub 2-1400Nm

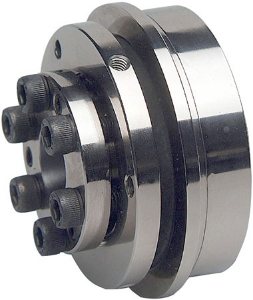

OKBK/L-10
OKBK/L-10
Safety Coupling with Steel Inner Conical Hub, Steel Bellows, 3-7Nm Adjustable Overload Torque
Product specifications
Diameter [D]
49
Min. Bore Diameter [D1] H7
6
Max. Bore Diameter [D1] H7
14
Diameter [D3]
37
Diameter [D4]
42
Diameter [D5]
47
Dimension [L]
36
Dimension [L3]
5
Dimension [t]
0.7
Thread [M2]
M3
Thread [M1] DIN 933
M3
Adjustable Overload Torque TKN (Nm)
3-7
Max. Speed [rpm]
12000
Mass [kg]
0.18
Moment of Inertia J Kg cm²
0.4
Specifications
Overview
Product specifications
Diameter [D]
49
Min. Bore Diameter [D1] H7
6
Max. Bore Diameter [D1] H7
14
Diameter [D3]
37
Diameter [D4]
42
Diameter [D5]
47
Dimension [L]
36
Dimension [L3]
5
Dimension [t]
0.7
Thread [M2]
M3
Thread [M1] DIN 933
M3
Adjustable Overload Torque TKN (Nm)
3-7
Max. Speed [rpm]
12000
Mass [kg]
0.18
Moment of Inertia J Kg cm²
0.4
