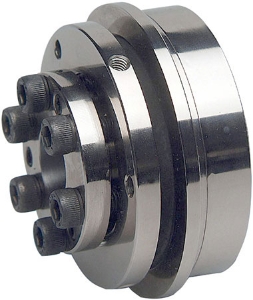

OKBK/L-150-2
OKBK/L-150-2
Safety Coupling with Steel Inner Conical Hub, Steel Bellows, 65-150Nm Adjustable Overload Torque
Product specifications
Diameter [D]
94
Min. Bore Diameter [D1] H7
20
Max. Bore Diameter [D1] H7
35
Diameter [D3]
68
Diameter [D4]
80
Diameter [D5]
90
Dimension [L]
60
Dimension [L3]
10
Dimension [t]
2
Thread [M2]
M6
Thread [M1] DIN 933
M6
Adjustable Overload Torque TKN (Nm)
65-150
Max. Speed [rpm]
5500
Mass [kg]
1.72
Moment of Inertia J Kg cm²
15
Specifications
Overview
Product specifications
Diameter [D]
94
Min. Bore Diameter [D1] H7
20
Max. Bore Diameter [D1] H7
35
Diameter [D3]
68
Diameter [D4]
80
Diameter [D5]
90
Dimension [L]
60
Dimension [L3]
10
Dimension [t]
2
Thread [M2]
M6
Thread [M1] DIN 933
M6
Adjustable Overload Torque TKN (Nm)
65-150
Max. Speed [rpm]
5500
Mass [kg]
1.72
Moment of Inertia J Kg cm²
15
