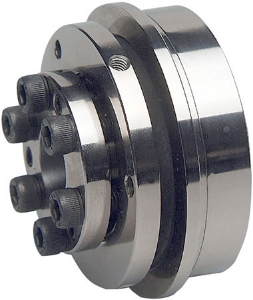

OKBK/L-30-2
OKBK/L-30-2
Safety Coupling with Steel Inner Conical Hub, Steel Bellows, 10-30Nm Adjustable Overload Torque
Product specifications
Diameter [D]
64
Min. Bore Diameter [D1] H7
12
Max. Bore Diameter [D1] H7
20
Diameter [D3]
47
Diameter [D4]
53
Diameter [D5]
60
Dimension [L]
43
Dimension [L3]
6
Dimension [t]
1.2
Thread [M2]
M4
Thread [M1] DIN 933
M5
Adjustable Overload Torque TKN (Nm)
10-30
Max. Speed [rpm]
9400
Mass [kg]
0.54
Moment of Inertia J Kg cm²
2.2
Specifications
Overview
Product specifications
Diameter [D]
64
Min. Bore Diameter [D1] H7
12
Max. Bore Diameter [D1] H7
20
Diameter [D3]
47
Diameter [D4]
53
Diameter [D5]
60
Dimension [L]
43
Dimension [L3]
6
Dimension [t]
1.2
Thread [M2]
M4
Thread [M1] DIN 933
M5
Adjustable Overload Torque TKN (Nm)
10-30
Max. Speed [rpm]
9400
Mass [kg]
0.54
Moment of Inertia J Kg cm²
2.2
