OKBK/L-800-2
OKBK/L-800-2

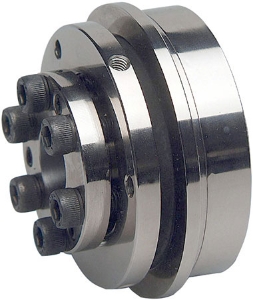

Safety Coupling with Steel Inner Conical Hub, Steel Bellows, 500-900Nm Adjustable Overload Torque
Product specifications
Diameter [D]
169
Min. Bore Diameter [D1] H7
50
Max. Bore Diameter [D1] H7
70
Diameter [D3]
110
Diameter [D4]
125
Diameter [D5]
165
Dimension [L]
110
Dimension [L3]
15
Dimension [t]
2
Thread [M2]
M12
Thread [M1] DIN 933
M16
Adjustable Overload Torque TKN (Nm)
500-900
Max. Speed [rpm]
3500
Mass [kg]
13.1
Moment of Inertia J Kg cm²
380
Specifications
Overview
Product specifications
Diameter [D]
169
Min. Bore Diameter [D1] H7
50
Max. Bore Diameter [D1] H7
70
Diameter [D3]
110
Diameter [D4]
125
Diameter [D5]
165
Dimension [L]
110
Dimension [L3]
15
Dimension [t]
2
Thread [M2]
M12
Thread [M1] DIN 933
M16
Adjustable Overload Torque TKN (Nm)
500-900
Max. Speed [rpm]
3500
Mass [kg]
13.1
Moment of Inertia J Kg cm²
380
