OKBS11-100X145

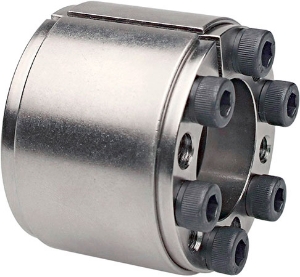

Ondrives Precision Gears and Gearboxes Part number OKBS11-100X145

OKBS11-100X145

C60 Steel Internal Locking Assemblies, Self Centering for High Torques
Ondrives Precision Gears and Gearboxes Part number OKBS11-100X145 Ondrives Precision Gears and Gearboxes Part number OKBS11-100X145

Product specifications

Diameter [B]100
Diameter [D]145
Torque (Nm)26300
Dimension [L]112
Dimension [L1]90
Dimension [b]100
Shaft Pw N/mm²200
Hub Pn (N/mm²)107
No. of Screws11
Cap Screw Din 912M12x80
Ta (Nm)145
Mass [kg]6.12

Product specifications

Diameter [B]100
Diameter [D]145
Torque (Nm)26300
Dimension [L]112
Dimension [L1]90
Dimension [b]100
Shaft Pw N/mm²200
Hub Pn (N/mm²)107
No. of Screws11
Cap Screw Din 912M12x80
Ta (Nm)145
Mass [kg]6.12
