  2. OKBS11 : Internal Locking Assemblies 840-360,000Nm

OKBS11-120X165

Ondrives Precision Gears and Gearboxes Part number OKBS11-120X165

OKBS11-120X165

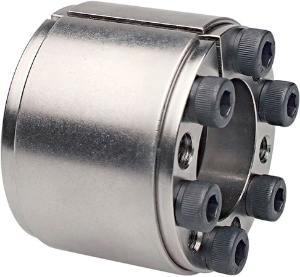

C60 Steel Internal Locking Assemblies, Self Centering for High Torques
Ondrives Precision Gears and Gearboxes Part number OKBS11-120X165 Ondrives Precision Gears and Gearboxes Part number OKBS11-120X165

Product specifications

Diameter [B]120
Diameter [D]165
Torque (Nm)40400
Dimension [L]112
Dimension [L1]90
Dimension [b]100
Shaft Pw N/mm²212
Hub Pn (N/mm²)120
No. of Screws14
Cap Screw Din 912M12x80
Ta (Nm)145
Mass [kg]7.12

Product specifications

Diameter [B]120
Diameter [D]165
Torque (Nm)40400
Dimension [L]112
Dimension [L1]90
Dimension [b]100
Shaft Pw N/mm²212
Hub Pn (N/mm²)120
No. of Screws14
Cap Screw Din 912M12x80
Ta (Nm)145
Mass [kg]7.12
