OKBS11-150X200

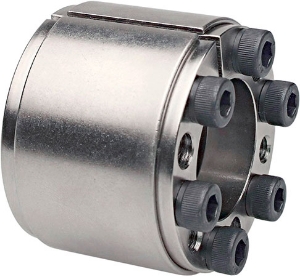

Ondrives Precision Gears and Gearboxes Part number OKBS11-150X200

OKBS11-150X200

C60 Steel Internal Locking Assemblies, Self Centering for High Torques
Ondrives Precision Gears and Gearboxes Part number OKBS11-150X200 Ondrives Precision Gears and Gearboxes Part number OKBS11-150X200

Product specifications

Diameter [B]150
Diameter [D]200
Torque (Nm)74200
Dimension [L]130
Dimension [L1]104
Dimension [b]115
Shaft Pw N/mm²208
Hub Pn (N/mm²)127
No. of Screws15
Cap Screw Din 912M14x90
Ta (Nm)230
Mass [kg]11.26

Product specifications

Diameter [B]150
Diameter [D]200
Torque (Nm)74200
Dimension [L]130
Dimension [L1]104
Dimension [b]115
Shaft Pw N/mm²208
Hub Pn (N/mm²)127
No. of Screws15
Cap Screw Din 912M14x90
Ta (Nm)230
Mass [kg]11.26
