OKBS13-24X50

OKBS13-24X50

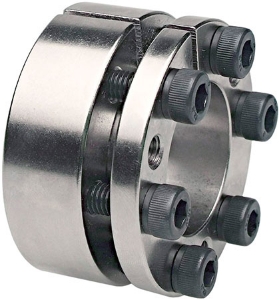

C60 Steel Internal Locking Assemblies, Self Centering, Short Construction

Product specifications

Diameter [B]24
Diameter [D]50
Torque (Nm)440
Dimension [L]34
Dimension [L1]17
Dimension [b]22
Dimension [L3]28
Shaft Pw N/mm²243
Hub Pn (N/mm²)120
No. of Screws6
Cap Screw Din 912M6x20
Ta (Nm)14
Mass [kg]0.26
