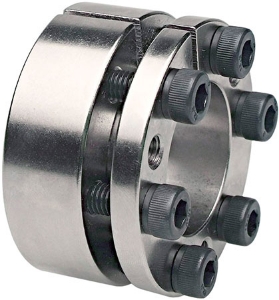

OKBS13-35X60

OKBS13-35X60

C60 Steel Internal Locking Assemblies, Self Centering, Short Construction

Product specifications

Diameter [B]35
Diameter [D]60
Torque (Nm)1050
Dimension [L]34
Dimension [L1]17
Dimension [b]22
Dimension [L3]28
Shaft Pw N/mm²270
Hub Pn (N/mm²)155
No. of Screws8
Cap Screw Din 912M6x20
Ta (Nm)14
Mass [kg]0.33
