OKBS16-100X145

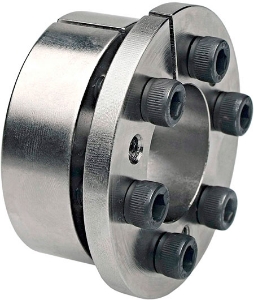

Ondrives Precision Gears and Gearboxes Part number OKBS16-100X145

OKBS16-100X145

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity, No Axial Displacement
Ondrives Precision Gears and Gearboxes Part number OKBS16-100X145 Ondrives Precision Gears and Gearboxes Part number OKBS16-100X145

Product specifications

Diameter [B]100
Diameter [D]145
Torque (Nm)9700
Dimension [L]56
Dimension [L1]26
Dimension [b]32
Dimension [L3]44
Shaft Pw N/mm²200
Hub Pn (N/mm²)140
No. of Screws8
Cap Screw Din 912M12x35
Ta (Nm)145
Mass [kg]2.68

Product specifications

Diameter [B]100
Diameter [D]145
Torque (Nm)9700
Dimension [L]56
Dimension [L1]26
Dimension [b]32
Dimension [L3]44
Shaft Pw N/mm²200
Hub Pn (N/mm²)140
No. of Screws8
Cap Screw Din 912M12x35
Ta (Nm)145
Mass [kg]2.68
