OKBS16-150X200

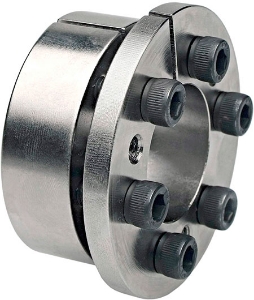

Ondrives Precision Gears and Gearboxes Part number OKBS16-150X200

OKBS16-150X200

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity, No Axial Displacement
Ondrives Precision Gears and Gearboxes Part number OKBS16-150X200 Ondrives Precision Gears and Gearboxes Part number OKBS16-150X200

Product specifications

Diameter [B]150
Diameter [D]200
Torque (Nm)25100
Dimension [L]68
Dimension [L1]34
Dimension [b]40
Dimension [L3]54
Shaft Pw N/mm²175
Hub Pn (N/mm²)130
No. of Screws10
Cap Screw Din 912M12x35
Ta (Nm)145
Mass [kg]5.14

Product specifications

Diameter [B]150
Diameter [D]200
Torque (Nm)25100
Dimension [L]68
Dimension [L1]34
Dimension [b]40
Dimension [L3]54
Shaft Pw N/mm²175
Hub Pn (N/mm²)130
No. of Screws10
Cap Screw Din 912M12x35
Ta (Nm)145
Mass [kg]5.14
