OKBS40 : Internal Locking Assemblies 255-68,000Nm

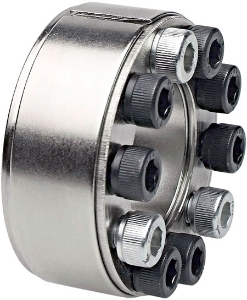

OKBS40-120X165
OKBS40-120X165
C60 Steel Internal Locking Assemblies, Not Self Centering
Product specifications
Diameter [B]
120
Diameter [D]
165
Torque (Nm)
13100
Dimension [L]
47
Dimension [L1]
26
Dimension [b]
33
Shaft Pw N/mm²
185
Hub Pn (N/mm²)
135
No. of Screws
16
Cap Screw Din 912
M12x30
Ta (Nm)
125
Mass [kg]
2.35
Specifications
Overview
Product specifications
Diameter [B]
120
Diameter [D]
165
Torque (Nm)
13100
Dimension [L]
47
Dimension [L1]
26
Dimension [b]
33
Shaft Pw N/mm²
185
Hub Pn (N/mm²)
135
No. of Screws
16
Cap Screw Din 912
M12x30
Ta (Nm)
125
Mass [kg]
2.35
