OKBS40-160X210

OKBS40-160X210

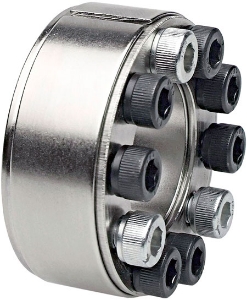

C60 Steel Internal Locking Assemblies, Not Self Centering

Product specifications

Diameter [B]160
Diameter [D]210
Torque (Nm)28000
Dimension [L]52
Dimension [L1]34
Dimension [b]38
Shaft Pw N/mm²170
Hub Pn (N/mm²)130
No. of Screws26
Cap Screw Din 912M12x30
Ta (Nm)125
Mass [kg]4.3
