OKBS40-24X50

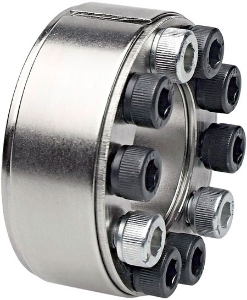

Ondrives Precision Gears and Gearboxes Part number OKBS40-24X50

OKBS40-24X50

C60 Steel Internal Locking Assemblies, Not Self Centering
Ondrives Precision Gears and Gearboxes Part number OKBS40-24X50 Ondrives Precision Gears and Gearboxes Part number OKBS40-24X50

Product specifications

Diameter [B]24
Diameter [D]50
Torque (Nm)360
Dimension [L]28
Dimension [L1]17
Dimension [b]20
Shaft Pw N/mm²195
Hub Pn (N/mm²)95
No. of Screws9
Cap Screw Din 912M6x18
Ta (Nm)14
Mass [kg]0.26

Product specifications

Diameter [B]24
Diameter [D]50
Torque (Nm)360
Dimension [L]28
Dimension [L1]17
Dimension [b]20
Shaft Pw N/mm²195
Hub Pn (N/mm²)95
No. of Screws9
Cap Screw Din 912M6x18
Ta (Nm)14
Mass [kg]0.26
