OKBS40-32X60

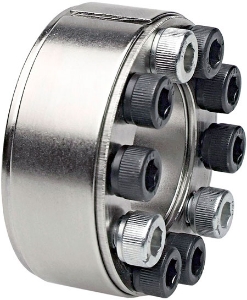

Ondrives Precision Gears and Gearboxes Part number OKBS40-32X60

OKBS40-32X60

C60 Steel Internal Locking Assemblies, Not Self Centering
Ondrives Precision Gears and Gearboxes Part number OKBS40-32X60 Ondrives Precision Gears and Gearboxes Part number OKBS40-32X60

Product specifications

Diameter [B]32
Diameter [D]60
Torque (Nm)630
Dimension [L]28
Dimension [L1]17
Dimension [b]20
Shaft Pw N/mm²192
Hub Pn (N/mm²)105
No. of Screws12
Cap Screw Din 912M6x18
Ta (Nm)14
Mass [kg]0.34

Product specifications

Diameter [B]32
Diameter [D]60
Torque (Nm)630
Dimension [L]28
Dimension [L1]17
Dimension [b]20
Shaft Pw N/mm²192
Hub Pn (N/mm²)105
No. of Screws12
Cap Screw Din 912M6x18
Ta (Nm)14
Mass [kg]0.34
