OKBS40-45X75

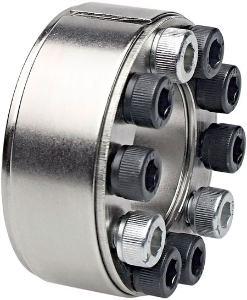

Ondrives Precision Gears and Gearboxes Part number OKBS40-45X75

OKBS40-45X75

C60 Steel Internal Locking Assemblies, Not Self Centering
Ondrives Precision Gears and Gearboxes Part number OKBS40-45X75 Ondrives Precision Gears and Gearboxes Part number OKBS40-45X75

Product specifications

Diameter [B]45
Diameter [D]75
Torque (Nm)1610
Dimension [L]34
Dimension [L1]20
Dimension [b]24
Shaft Pw N/mm²210
Hub Pn (N/mm²)125
No. of Screws12
Cap Screw Din 912M8x22
Ta (Nm)35
Mass [kg]0.57

Product specifications

Diameter [B]45
Diameter [D]75
Torque (Nm)1610
Dimension [L]34
Dimension [L1]20
Dimension [b]24
Shaft Pw N/mm²210
Hub Pn (N/mm²)125
No. of Screws12
Cap Screw Din 912M8x22
Ta (Nm)35
Mass [kg]0.57
