OKBS40-70X110

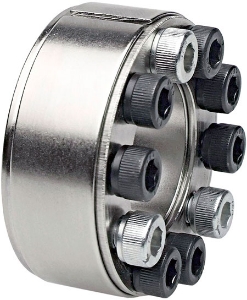

Ondrives Precision Gears and Gearboxes Part number OKBS40-70X110

OKBS40-70X110

C60 Steel Internal Locking Assemblies, Not Self Centering
Ondrives Precision Gears and Gearboxes Part number OKBS40-70X110 Ondrives Precision Gears and Gearboxes Part number OKBS40-70X110

Product specifications

Diameter [B]70
Diameter [D]110
Torque (Nm)4600
Dimension [L]40
Dimension [L1]24
Dimension [b]28
Shaft Pw N/mm²210
Hub Pn (N/mm²)130
No. of Screws14
Cap Screw Din 912M10x25
Ta (Nm)70
Mass [kg]1.26

Product specifications

Diameter [B]70
Diameter [D]110
Torque (Nm)4600
Dimension [L]40
Dimension [L1]24
Dimension [b]28
Shaft Pw N/mm²210
Hub Pn (N/mm²)130
No. of Screws14
Cap Screw Din 912M10x25
Ta (Nm)70
Mass [kg]1.26
