OKBS61-16X32

Ondrives Precision Gears and Gearboxes Part number OKBS61-16X32

OKBS61-16X32

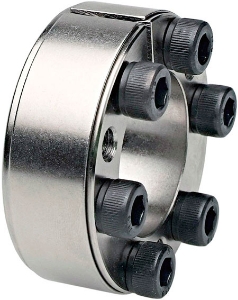

ETG100 High Strength Steel Internal Locking Assemblies, Good Centering and True Running
Ondrives Precision Gears and Gearboxes Part number OKBS61-16X32 Ondrives Precision Gears and Gearboxes Part number OKBS61-16X32

Product specifications

Diameter [B]16
Diameter [D]32
Torque (Nm)70
Dimension [L]21
Dimension [L1]17
Shaft Pw N/mm²130
Hub Pn (N/mm²)65
No. of Screws4
Cap Screw Din 912M4x16
Ta (Nm)4.9
Mass [kg]0.066

Product specifications

Diameter [B]16
Diameter [D]32
Torque (Nm)70
Dimension [L]21
Dimension [L1]17
Shaft Pw N/mm²130
Hub Pn (N/mm²)65
No. of Screws4
Cap Screw Din 912M4x16
Ta (Nm)4.9
Mass [kg]0.066
