OKBS61-25X47

bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

OKBS61-25X47

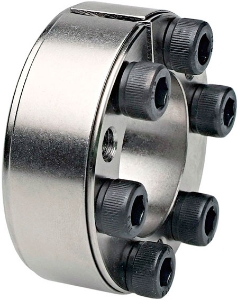

ETG100 High Strength Steel Internal Locking Assemblies, Good Centering and True Running
bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Diameter [B]25
Diameter [D]47
Torque (Nm)390
Dimension [L]32
Dimension [L1]26
Shaft Pw N/mm²210
Hub Pn (N/mm²)110
No. of Screws6
Cap Screw Din 912M6x25
Ta (Nm)16
Mass [kg]0.19

Product specifications

Diameter [B]25
Diameter [D]47
Torque (Nm)390
Dimension [L]32
Dimension [L1]26
Shaft Pw N/mm²210
Hub Pn (N/mm²)110
No. of Screws6
Cap Screw Din 912M6x25
Ta (Nm)16
Mass [kg]0.19
