OKBS70-110X155

Ondrives Precision Gears and Gearboxes Part number OKBS70-110X155

OKBS70-110X155

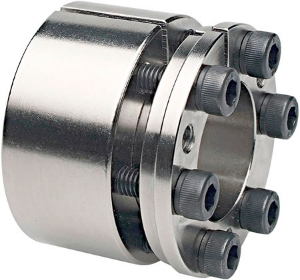

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
Ondrives Precision Gears and Gearboxes Part number OKBS70-110X155 Ondrives Precision Gears and Gearboxes Part number OKBS70-110X155

Product specifications

Diameter [B]110
Diameter [D]155
Torque (Nm)17200
Dimension [L]89
Dimension [L1]46
Dimension [b]52
Dimension [L3]77
Shaft Pw N/mm²196
Hub Pn (N/mm²)139
No. of Screws8
Cap Screw Din 912M12x45
Ta (Nm)145
Mass [kg]5

Product specifications

Diameter [B]110
Diameter [D]155
Torque (Nm)17200
Dimension [L]89
Dimension [L1]46
Dimension [b]52
Dimension [L3]77
Shaft Pw N/mm²196
Hub Pn (N/mm²)139
No. of Screws8
Cap Screw Din 912M12x45
Ta (Nm)145
Mass [kg]5
