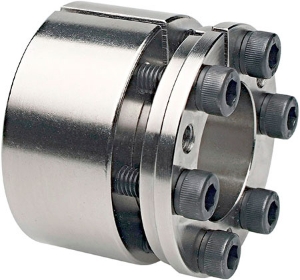

OKBS70-120X165

Ondrives Precision Gears and Gearboxes Part number OKBS70-120X165

OKBS70-120X165

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
Ondrives Precision Gears and Gearboxes Part number OKBS70-120X165 Ondrives Precision Gears and Gearboxes Part number OKBS70-120X165

Product specifications

Diameter [B]120
Diameter [D]165
Torque (Nm)22500
Dimension [L]89
Dimension [L1]46
Dimension [b]52
Dimension [L3]77
Shaft Pw N/mm²216
Hub Pn (N/mm²)156
No. of Screws10
Cap Screw Din 912M12x45
Ta (Nm)145
Mass [kg]5.4

Product specifications

Diameter [B]120
Diameter [D]165
Torque (Nm)22500
Dimension [L]89
Dimension [L1]46
Dimension [b]52
Dimension [L3]77
Shaft Pw N/mm²216
Hub Pn (N/mm²)156
No. of Screws10
Cap Screw Din 912M12x45
Ta (Nm)145
Mass [kg]5.4
