OKBS70-130X180

bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

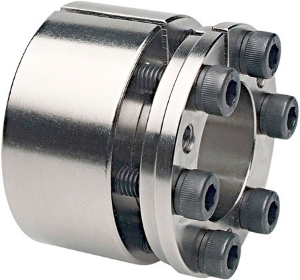

OKBS70-130X180

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Diameter [B]130
Diameter [D]180
Torque (Nm)24000
Dimension [L]89
Dimension [L1]46
Dimension [b]52
Dimension [L3]77
Shaft Pw N/mm²196
Hub Pn (N/mm²)140
No. of Screws12
Cap Screw Din 912M12x45
Ta (Nm)145
Mass [kg]5.7

Product specifications

Diameter [B]130
Diameter [D]180
Torque (Nm)24000
Dimension [L]89
Dimension [L1]46
Dimension [b]52
Dimension [L3]77
Shaft Pw N/mm²196
Hub Pn (N/mm²)140
No. of Screws12
Cap Screw Din 912M12x45
Ta (Nm)145
Mass [kg]5.7
