OKBS70-180X235

Ondrives Precision Gears and Gearboxes Part number OKBS70-180X235

OKBS70-180X235

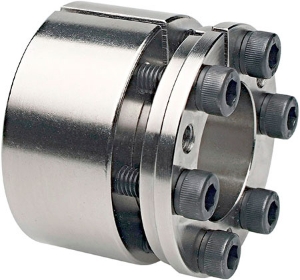

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
Ondrives Precision Gears and Gearboxes Part number OKBS70-180X235 Ondrives Precision Gears and Gearboxes Part number OKBS70-180X235

Product specifications

Diameter [B]180
Diameter [D]235
Torque (Nm)41300
Dimension [L]90
Dimension [L1]51
Dimension [b]59
Dimension [L3]84
Shaft Pw N/mm²160
Hub Pn (N/mm²)120
No. of Screws12
Cap Screw Din 912M14x45
Ta (Nm)230
Mass [kg]10.1

Product specifications

Diameter [B]180
Diameter [D]235
Torque (Nm)41300
Dimension [L]90
Dimension [L1]51
Dimension [b]59
Dimension [L3]84
Shaft Pw N/mm²160
Hub Pn (N/mm²)120
No. of Screws12
Cap Screw Din 912M14x45
Ta (Nm)230
Mass [kg]10.1
