OKBS70-32X60

Ondrives Precision Gears and Gearboxes Part number OKBS70-32X60

OKBS70-32X60

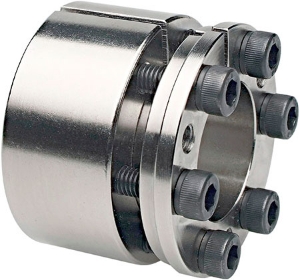

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
Ondrives Precision Gears and Gearboxes Part number OKBS70-32X60 Ondrives Precision Gears and Gearboxes Part number OKBS70-32X60

Product specifications

Diameter [B]32
Diameter [D]60
Torque (Nm)930
Dimension [L]45
Dimension [L1]26
Dimension [b]31
Dimension [L3]39
Shaft Pw N/mm²230
Hub Pn (N/mm²)114
No. of Screws8
Cap Screw Din 912M6x25
Ta (Nm)17
Mass [kg]0.5

Product specifications

Diameter [B]32
Diameter [D]60
Torque (Nm)930
Dimension [L]45
Dimension [L1]26
Dimension [b]31
Dimension [L3]39
Shaft Pw N/mm²230
Hub Pn (N/mm²)114
No. of Screws8
Cap Screw Din 912M6x25
Ta (Nm)17
Mass [kg]0.5
