OKBS70-70X110

Ondrives Precision Gears and Gearboxes Part number OKBS70-70X110

OKBS70-70X110

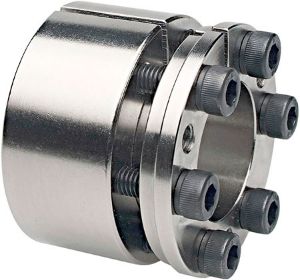

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
Ondrives Precision Gears and Gearboxes Part number OKBS70-70X110 Ondrives Precision Gears and Gearboxes Part number OKBS70-70X110

Product specifications

Diameter [B]70
Diameter [D]110
Torque (Nm)6840
Dimension [L]67
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²225
Hub Pn (N/mm²)143
No. of Screws8
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.25

Product specifications

Diameter [B]70
Diameter [D]110
Torque (Nm)6840
Dimension [L]67
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²225
Hub Pn (N/mm²)143
No. of Screws8
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.25
