OKBS70-75X115

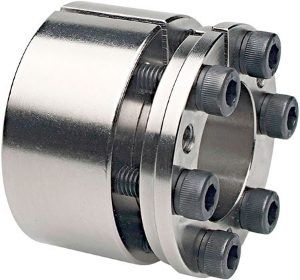

Ondrives Precision Gears and Gearboxes Part number OKBS70-75X115

OKBS70-75X115

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
Ondrives Precision Gears and Gearboxes Part number OKBS70-75X115 Ondrives Precision Gears and Gearboxes Part number OKBS70-75X115

Product specifications

Diameter [B]75
Diameter [D]115
Torque (Nm)7500
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²210
Hub Pn (N/mm²)138
No. of Screws8
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.55

Product specifications

Diameter [B]75
Diameter [D]115
Torque (Nm)7500
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²210
Hub Pn (N/mm²)138
No. of Screws8
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.55
