OKBS70-80X120

bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

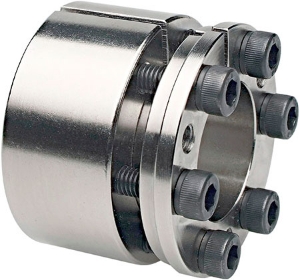

OKBS70-80X120

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer bellow coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Diameter [B]80
Diameter [D]120
Torque (Nm)8100
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²200
Hub Pn (N/mm²)130
No. of Screws8
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.7

Product specifications

Diameter [B]80
Diameter [D]120
Torque (Nm)8100
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²200
Hub Pn (N/mm²)130
No. of Screws8
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.7
