OKBS70-85X125

Ondrives Precision Gears and Gearboxes Part number OKBS70-85X125

OKBS70-85X125

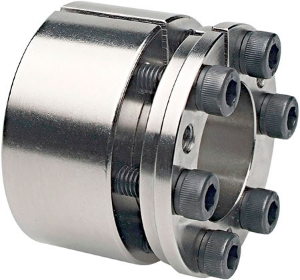

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
Ondrives Precision Gears and Gearboxes Part number OKBS70-85X125 Ondrives Precision Gears and Gearboxes Part number OKBS70-85X125

Product specifications

Diameter [B]85
Diameter [D]125
Torque (Nm)9700
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²210
Hub Pn (N/mm²)145
No. of Screws10
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.8

Product specifications

Diameter [B]85
Diameter [D]125
Torque (Nm)9700
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²210
Hub Pn (N/mm²)145
No. of Screws10
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.8
