OKBS70-90X130

Ondrives Precision Gears and Gearboxes Part number OKBS70-90X130

OKBS70-90X130

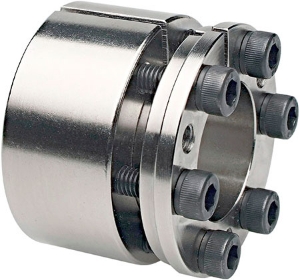

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity
Ondrives Precision Gears and Gearboxes Part number OKBS70-90X130 Ondrives Precision Gears and Gearboxes Part number OKBS70-90X130

Product specifications

Diameter [B]90
Diameter [D]130
Torque (Nm)10300
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²200
Hub Pn (N/mm²)138
No. of Screws10
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.85

Product specifications

Diameter [B]90
Diameter [D]130
Torque (Nm)10300
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²200
Hub Pn (N/mm²)138
No. of Screws10
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]2.85
