OKBS71-160X210

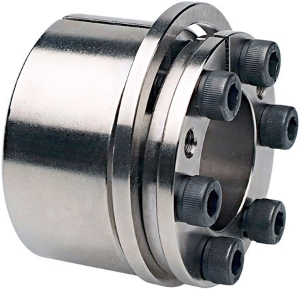

Ondrives Precision Gears and Gearboxes Part number OKBS71-160X210

OKBS71-160X210

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity, No Axial Displacement
Ondrives Precision Gears and Gearboxes Part number OKBS71-160X210 Ondrives Precision Gears and Gearboxes Part number OKBS71-160X210

Product specifications

Diameter [B]160
Diameter [D]210
Torque (Nm)33150
Dimension [L]90
Dimension [L1]51
Dimension [b]59
Dimension [L3]84
Shaft Pw N/mm²202
Hub Pn (N/mm²)152
No. of Screws10
Cap Screw Din 912M14x45
Ta (Nm)230
Mass [kg]7.32

Product specifications

Diameter [B]160
Diameter [D]210
Torque (Nm)33150
Dimension [L]90
Dimension [L1]51
Dimension [b]59
Dimension [L3]84
Shaft Pw N/mm²202
Hub Pn (N/mm²)152
No. of Screws10
Cap Screw Din 912M14x45
Ta (Nm)230
Mass [kg]7.32
