OKBS71-28X55

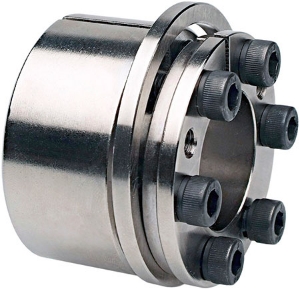

Ondrives Precision Gears and Gearboxes Part number OKBS71-28X55

OKBS71-28X55

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity, No Axial Displacement
Ondrives Precision Gears and Gearboxes Part number OKBS71-28X55 Ondrives Precision Gears and Gearboxes Part number OKBS71-28X55

Product specifications

Diameter [B]28
Diameter [D]55
Torque (Nm)590
Dimension [L]45
Dimension [L1]26
Dimension [b]31
Dimension [L3]39
Shaft Pw N/mm²207
Hub Pn (N/mm²)108
No. of Screws6
Cap Screw Din 912M6x25
Ta (Nm)17
Mass [kg]0.36

Product specifications

Diameter [B]28
Diameter [D]55
Torque (Nm)590
Dimension [L]45
Dimension [L1]26
Dimension [b]31
Dimension [L3]39
Shaft Pw N/mm²207
Hub Pn (N/mm²)108
No. of Screws6
Cap Screw Din 912M6x25
Ta (Nm)17
Mass [kg]0.36
