OKBS71-48X80

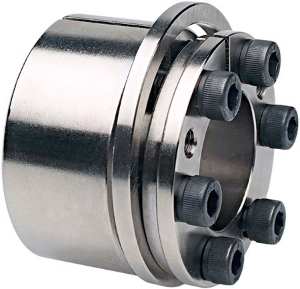

Ondrives Precision Gears and Gearboxes Part number OKBS71-48X80

OKBS71-48X80

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity, No Axial Displacement
Ondrives Precision Gears and Gearboxes Part number OKBS71-48X80 Ondrives Precision Gears and Gearboxes Part number OKBS71-48X80

Product specifications

Diameter [B]48
Diameter [D]80
Torque (Nm)2180
Dimension [L]55
Dimension [L1]30
Dimension [b]36
Dimension [L3]47
Shaft Pw N/mm²226
Hub Pn (N/mm²)145
No. of Screws6
Cap Screw Din 912M8x30
Ta (Nm)41
Mass [kg]0.8

Product specifications

Diameter [B]48
Diameter [D]80
Torque (Nm)2180
Dimension [L]55
Dimension [L1]30
Dimension [b]36
Dimension [L3]47
Shaft Pw N/mm²226
Hub Pn (N/mm²)145
No. of Screws6
Cap Screw Din 912M8x30
Ta (Nm)41
Mass [kg]0.8
