OKBS71-80X120

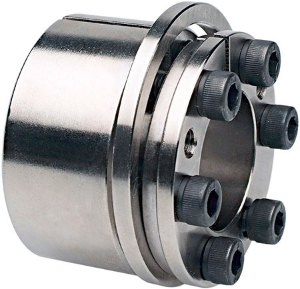

Ondrives Precision Gears and Gearboxes Part number OKBS71-80X120

OKBS71-80X120

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity, No Axial Displacement
Ondrives Precision Gears and Gearboxes Part number OKBS71-80X120 Ondrives Precision Gears and Gearboxes Part number OKBS71-80X120

Product specifications

Diameter [B]80
Diameter [D]120
Torque (Nm)6840
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²202
Hub Pn (N/mm²)142
No. of Screws8
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]1.87

Product specifications

Diameter [B]80
Diameter [D]120
Torque (Nm)6840
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²202
Hub Pn (N/mm²)142
No. of Screws8
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]1.87
