OKBS71-85X125

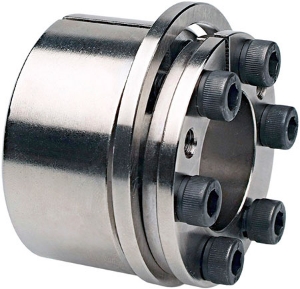

Ondrives Precision Gears and Gearboxes Part number OKBS71-85X125

OKBS71-85X125

C60 Steel Internal Locking Assemblies, Self Centering, High Concentricity and Rectangularity, No Axial Displacement
Ondrives Precision Gears and Gearboxes Part number OKBS71-85X125 Ondrives Precision Gears and Gearboxes Part number OKBS71-85X125

Product specifications

Diameter [B]85
Diameter [D]125
Torque (Nm)8160
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²221
Hub Pn (N/mm²)161
No. of Screws10
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]1.96

Product specifications

Diameter [B]85
Diameter [D]125
Torque (Nm)8160
Dimension [L]72
Dimension [L1]40
Dimension [b]46
Dimension [L3]62
Shaft Pw N/mm²221
Hub Pn (N/mm²)161
No. of Screws10
Cap Screw Din 912M10x35
Ta (Nm)83
Mass [kg]1.96
