OKSD19-100X170-70

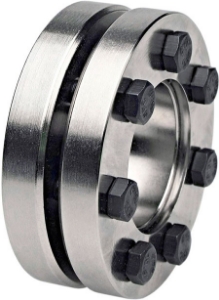

Ondrives Precision Gears and Gearboxes Part number OKSD19-100X170-70

OKSD19-100X170-70

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-100X170-70 Ondrives Precision Gears and Gearboxes Part number OKSD19-100X170-70

Product specifications

Bore Diameter [B]100
Bore Diameter [B2]70
Diameter [D]170
Torque (Nm)7600
Dimension [L]49.3
Dimension [L1]34
Dimension [b]44
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²194
No. of Screws12
Screw (DIN 933)M8x35
Ta (Nm)30
Mass [kg]4.7

Product specifications

Bore Diameter [B]100
Bore Diameter [B2]70
Diameter [D]170
Torque (Nm)7600
Dimension [L]49.3
Dimension [L1]34
Dimension [b]44
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²194
No. of Screws12
Screw (DIN 933)M8x35
Ta (Nm)30
Mass [kg]4.7
