OKSD19-165X290-120

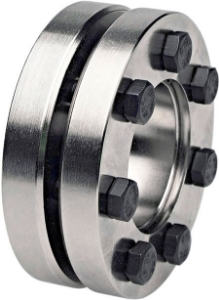

Ondrives Precision Gears and Gearboxes Part number OKSD19-165X290-120

OKSD19-165X290-120

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-165X290-120 Ondrives Precision Gears and Gearboxes Part number OKSD19-165X290-120

Product specifications

Bore Diameter [B]165
Bore Diameter [B2]120
Diameter [D]290
Torque (Nm)43600
Dimension [L]81
Dimension [L1]56
Dimension [b]71
Dimension [ØB2-ØB1]0.070
Shaft Pw N/mm²230
No. of Screws8
Screw (DIN 933)M16x55
Ta (Nm)250
Mass [kg]22

Product specifications

Bore Diameter [B]165
Bore Diameter [B2]120
Diameter [D]290
Torque (Nm)43600
Dimension [L]81
Dimension [L1]56
Dimension [b]71
Dimension [ØB2-ØB1]0.070
Shaft Pw N/mm²230
No. of Screws8
Screw (DIN 933)M16x55
Ta (Nm)250
Mass [kg]22
