OKSD19-175X300-130

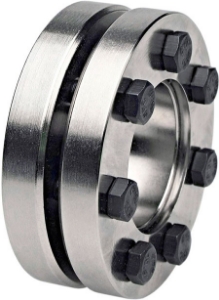

Ondrives Precision Gears and Gearboxes Part number OKSD19-175X300-130

OKSD19-175X300-130

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-175X300-130 Ondrives Precision Gears and Gearboxes Part number OKSD19-175X300-130

Product specifications

Bore Diameter [B]175
Bore Diameter [B2]130
Diameter [D]300
Torque (Nm)47800
Dimension [L]81
Dimension [L1]56
Dimension [b]71
Dimension [ØB2-ØB1]0.080
Shaft Pw N/mm²215
No. of Screws8
Screw (DIN 933)M16x55
Ta (Nm)250
Mass [kg]22

Product specifications

Bore Diameter [B]175
Bore Diameter [B2]130
Diameter [D]300
Torque (Nm)47800
Dimension [L]81
Dimension [L1]56
Dimension [b]71
Dimension [ØB2-ØB1]0.080
Shaft Pw N/mm²215
No. of Screws8
Screw (DIN 933)M16x55
Ta (Nm)250
Mass [kg]22
