OKSD19-24X50-19

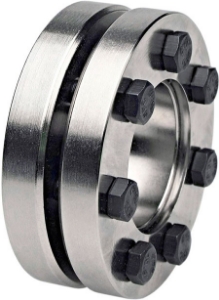

Ondrives Precision Gears and Gearboxes Part number OKSD19-24X50-19

OKSD19-24X50-19

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-24X50-19 Ondrives Precision Gears and Gearboxes Part number OKSD19-24X50-19

Product specifications

Bore Diameter [B]24
Bore Diameter [B2]19
Diameter [D]50
Torque (Nm)220
Dimension [L]23
Dimension [L1]14
Dimension [b]20
Dimension [ØB2-ØB1]0.017
Shaft Pw N/mm²189
No. of Screws6
Screw (DIN 933)M5x18
Ta (Nm)4
Mass [kg]0.2

Product specifications

Bore Diameter [B]24
Bore Diameter [B2]19
Diameter [D]50
Torque (Nm)220
Dimension [L]23
Dimension [L1]14
Dimension [b]20
Dimension [ØB2-ØB1]0.017
Shaft Pw N/mm²189
No. of Screws6
Screw (DIN 933)M5x18
Ta (Nm)4
Mass [kg]0.2
