OKSD19-50X90-38

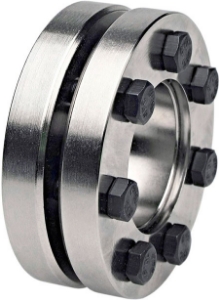

Ondrives Precision Gears and Gearboxes Part number OKSD19-50X90-38

OKSD19-50X90-38

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-50X90-38 Ondrives Precision Gears and Gearboxes Part number OKSD19-50X90-38

Product specifications

Bore Diameter [B]50
Bore Diameter [B2]38
Diameter [D]90
Torque (Nm)1500
Dimension [L]31.5
Dimension [L1]22
Dimension [b]27.5
Dimension [ØB2-ØB1]0.032
Shaft Pw N/mm²204
No. of Screws8
Screw (DIN 933)M6x25
Ta (Nm)12
Mass [kg]0.8

Product specifications

Bore Diameter [B]50
Bore Diameter [B2]38
Diameter [D]90
Torque (Nm)1500
Dimension [L]31.5
Dimension [L1]22
Dimension [b]27.5
Dimension [ØB2-ØB1]0.032
Shaft Pw N/mm²204
No. of Screws8
Screw (DIN 933)M6x25
Ta (Nm)12
Mass [kg]0.8
