OKSD19-55X100-45

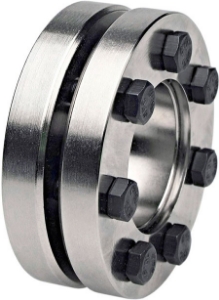

Ondrives Precision Gears and Gearboxes Part number OKSD19-55X100-45

OKSD19-55X100-45

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-55X100-45 Ondrives Precision Gears and Gearboxes Part number OKSD19-55X100-45

Product specifications

Bore Diameter [B]55
Bore Diameter [B2]45
Diameter [D]100
Torque (Nm)2100
Dimension [L]34.5
Dimension [L1]23
Dimension [b]30.5
Dimension [ØB2-ØB1]0.032
Shaft Pw N/mm²193
No. of Screws8
Screw (DIN 933)M6x25
Ta (Nm)12
Mass [kg]1.1

Product specifications

Bore Diameter [B]55
Bore Diameter [B2]45
Diameter [D]100
Torque (Nm)2100
Dimension [L]34.5
Dimension [L1]23
Dimension [b]30.5
Dimension [ØB2-ØB1]0.032
Shaft Pw N/mm²193
No. of Screws8
Screw (DIN 933)M6x25
Ta (Nm)12
Mass [kg]1.1
