OKSD19-68X115-50

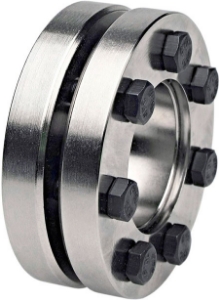

Ondrives Precision Gears and Gearboxes Part number OKSD19-68X115-50

OKSD19-68X115-50

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-68X115-50 Ondrives Precision Gears and Gearboxes Part number OKSD19-68X115-50

Product specifications

Bore Diameter [B]68
Bore Diameter [B2]50
Diameter [D]115
Torque (Nm)2500
Dimension [L]34.5
Dimension [L1]23
Dimension [b]30.5
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²184
No. of Screws10
Screw (DIN 933)M6x25
Ta (Nm)12
Mass [kg]1.4

Product specifications

Bore Diameter [B]68
Bore Diameter [B2]50
Diameter [D]115
Torque (Nm)2500
Dimension [L]34.5
Dimension [L1]23
Dimension [b]30.5
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²184
No. of Screws10
Screw (DIN 933)M6x25
Ta (Nm)12
Mass [kg]1.4
