OKSD19-75X138-60

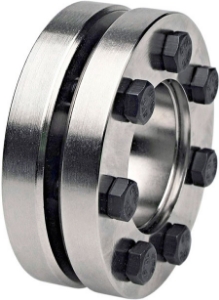

Ondrives Precision Gears and Gearboxes Part number OKSD19-75X138-60

OKSD19-75X138-60

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-75X138-60 Ondrives Precision Gears and Gearboxes Part number OKSD19-75X138-60

Product specifications

Bore Diameter [B]75
Bore Diameter [B2]60
Diameter [D]138
Torque (Nm)4700
Dimension [L]37.8
Dimension [L1]25
Dimension [b]32.5
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²221
No. of Screws7
Screw (DIN 933)M8x30
Ta (Nm)30
Mass [kg]2.4

Product specifications

Bore Diameter [B]75
Bore Diameter [B2]60
Diameter [D]138
Torque (Nm)4700
Dimension [L]37.8
Dimension [L1]25
Dimension [b]32.5
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²221
No. of Screws7
Screw (DIN 933)M8x30
Ta (Nm)30
Mass [kg]2.4
