OKSD19-80X145-60

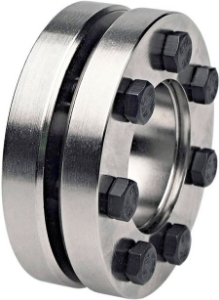

Ondrives Precision Gears and Gearboxes Part number OKSD19-80X145-60

OKSD19-80X145-60

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-80X145-60 Ondrives Precision Gears and Gearboxes Part number OKSD19-80X145-60

Product specifications

Bore Diameter [B]80
Bore Diameter [B2]60
Diameter [D]145
Torque (Nm)4100
Dimension [L]37.8
Dimension [L1]25
Dimension [b]32.5
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²192
No. of Screws7
Screw (DIN 933)M8x30
Ta (Nm)30
Mass [kg]2.7

Product specifications

Bore Diameter [B]80
Bore Diameter [B2]60
Diameter [D]145
Torque (Nm)4100
Dimension [L]37.8
Dimension [L1]25
Dimension [b]32.5
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²192
No. of Screws7
Screw (DIN 933)M8x30
Ta (Nm)30
Mass [kg]2.7
