OKSD19-80X145-65

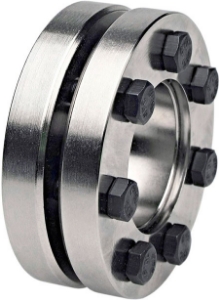

Ondrives Precision Gears and Gearboxes Part number OKSD19-80X145-65

OKSD19-80X145-65

Preserved Steel Shrink Disc for Hollow Shaft Connections
Ondrives Precision Gears and Gearboxes Part number OKSD19-80X145-65 Ondrives Precision Gears and Gearboxes Part number OKSD19-80X145-65

Product specifications

Bore Diameter [B]80
Bore Diameter [B2]65
Diameter [D]145
Torque (Nm)5200
Dimension [L]37.8
Dimension [L1]25
Dimension [b]32.5
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²211
No. of Screws7
Screw (DIN 933)M8x30
Ta (Nm)30
Mass [kg]2.7

Product specifications

Bore Diameter [B]80
Bore Diameter [B2]65
Diameter [D]145
Torque (Nm)5200
Dimension [L]37.8
Dimension [L1]25
Dimension [b]32.5
Dimension [ØB2-ØB1]0.048
Shaft Pw N/mm²211
No. of Screws7
Screw (DIN 933)M8x30
Ta (Nm)30
Mass [kg]2.7
