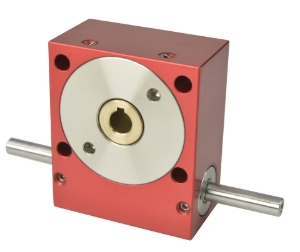

Precision worm gear reducer, ≤4' backlash, shaft input, 6mm output bore & 5mm input shaft, 1.40Nm-4.80Nm output torque, 20mm centres, ratio 10:1
Product specifications
Centre Dist. [a]
20.00
Gear Ratio [i=]
10:1
Output Torque T₂max [Nm]
5
Output Torque T₂n [Nm]
2.10
Output Backlash j
≤0.06°
Reflected Inertia at Input (kg•m²)
2.03 x 10-7
Efficiency n1 1000 r/min [ηz]
86%
Mass [kg]
0.18
Max. Input Radial Load Fr1 N
20
Max. Output Radial Load Fr2 N
120
Max. Output Axial Load Fa2 N
50
Lubrication Grease
Shell Gadus S5 V42P 2.5
Specifications
Product PDF
Technical
CAD
Overview
Product specifications
Centre Dist. [a]
20.00
Gear Ratio [i=]
10:1
Output Torque T₂max [Nm]
5
Output Torque T₂n [Nm]
2.10
Output Backlash j
≤0.06°
Reflected Inertia at Input (kg•m²)
2.03 x 10-7
Efficiency n1 1000 r/min [ηz]
86%
Mass [kg]
0.18
Max. Input Radial Load Fr1 N
20
Max. Output Radial Load Fr2 N
120
Max. Output Axial Load Fa2 N
50
Lubrication Grease
Shell Gadus S5 V42P 2.5
