P30-20
P30-20

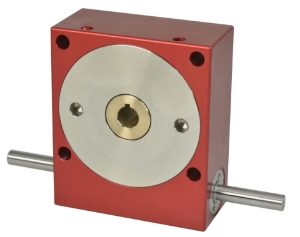

Precision worm gear reducer, ≤30' backlash, shaft input, 8mm output bore & 6mm input shaft, 2.70Nm-8.50Nm output torque, 30mm centres, ratio 20:1
Product specifications
Centre Dist. [a]
30.00
Gear Ratio [i=]
20:1
Output Torque T₂max [Nm]
9
Output Torque T₂n [Nm]
4.20
Output Backlash j
≤0.5°
Reflected Inertia at Input (kg•m²)
6.43 x 10-7
Efficiency n1 1000 r/min [ηz]
84%
Mass [kg]
0.48
Max. Input Radial Load Fr1 N
30
Max. Output Radial Load Fr2 N
200
Max. Output Axial Load Fa2 N
120
Lubrication Grease
Shell Gadus S5 V42P 2.5
Specifications
Product PDF
Technical
CAD
Overview
Product specifications
Centre Dist. [a]
30.00
Gear Ratio [i=]
20:1
Output Torque T₂max [Nm]
9
Output Torque T₂n [Nm]
4.20
Output Backlash j
≤0.5°
Reflected Inertia at Input (kg•m²)
6.43 x 10-7
Efficiency n1 1000 r/min [ηz]
84%
Mass [kg]
0.48
Max. Input Radial Load Fr1 N
30
Max. Output Radial Load Fr2 N
200
Max. Output Axial Load Fa2 N
120
Lubrication Grease
Shell Gadus S5 V42P 2.5
