P30-20AR

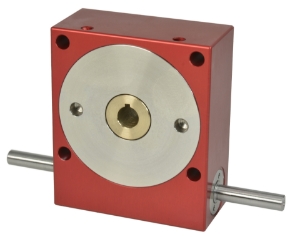

Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes

P30-20AR

Precision worm gear reducer, ≤4' backlash, shaft input, 8mm output bore & 6mm input shaft, 2.70Nm-8.50Nm output torque, 30mm centres, ratio 20:1
Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]20:1
Output Torque T₂max [Nm]9
Output Torque T₂n [Nm]4.20
Output Backlash j≤0.06°
Reflected Inertia at Input (kg•m²)6.43 x 10-7
Efficiency n1 1000 r/min [ηz]84%
Mass [kg]0.48
Max. Input Radial Load Fr1 N30
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N120
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]20:1
Output Torque T₂max [Nm]9
Output Torque T₂n [Nm]4.20
Output Backlash j≤0.06°
Reflected Inertia at Input (kg•m²)6.43 x 10-7
Efficiency n1 1000 r/min [ηz]84%
Mass [kg]0.48
Max. Input Radial Load Fr1 N30
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N120
Lubrication GreaseShell Gadus S5 V42P 2.5
