P60-20A

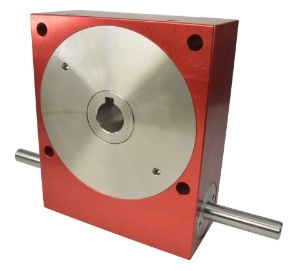

Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes

P60-20A

Precision worm gear reducer, ≤8' backlash, shaft input, 20mm output bore & 12mm input shaft, 35.0Nm-116.0Nm output torque, 64mm centres, ratio 20:1
Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]64.00
Gear Ratio [i=]20:1
Output Torque T₂max [Nm]120
Output Torque T₂n [Nm]54.00
Output Backlash j≤0.13°
Reflected Inertia at Input (kg•m²)1.78 x 10-5
Efficiency n1 1000 r/min [ηz]85%
Mass [kg]4.1
Max. Input Radial Load Fr1 N160
Max. Output Radial Load Fr2 N700
Max. Output Axial Load Fa2 N500
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Centre Dist. [a]64.00
Gear Ratio [i=]20:1
Output Torque T₂max [Nm]120
Output Torque T₂n [Nm]54.00
Output Backlash j≤0.13°
Reflected Inertia at Input (kg•m²)1.78 x 10-5
Efficiency n1 1000 r/min [ηz]85%
Mass [kg]4.1
Max. Input Radial Load Fr1 N160
Max. Output Radial Load Fr2 N700
Max. Output Axial Load Fa2 N500
Lubrication GreaseShell Gadus S5 V42P 2.5
