P70-15

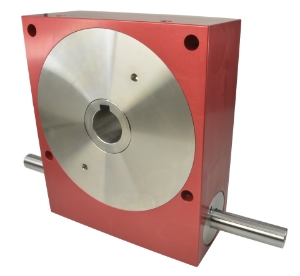

Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

P70-15

Precision worm gear reducer, ≤30' backlash, shaft input, 25mm output bore & 15mm input shaft, 42.0Nm-160.0Nm output torque, 72.5mm centres, ratio 15:1

Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Drawing of Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]	72.50
Gear Ratio [i=]	15:1
Output Torque T₂max [Nm]	160
Output Torque T₂n [Nm]	67.00
Output Backlash j	≤0.5°
Reflected Inertia at Input (kg•m²)	4.21 x 10-5
Efficiency n1 1000 r/min [ηz]	86%
Mass [kg]	6.4
Max. Input Radial Load Fr1 N	200
Max. Output Radial Load Fr2 N	800
Max. Output Axial Load Fa2 N	600
Lubrication Grease	Shell Gadus S5 V42P 2.5

Product specifications

Centre Dist. [a]	72.50
Gear Ratio [i=]	15:1
Output Torque T₂max [Nm]	160
Output Torque T₂n [Nm]	67.00
Output Backlash j	≤0.5°
Reflected Inertia at Input (kg•m²)	4.21 x 10-5
Efficiency n1 1000 r/min [ηz]	86%
Mass [kg]	6.4
Max. Input Radial Load Fr1 N	200
Max. Output Radial Load Fr2 N	800
Max. Output Axial Load Fa2 N	600
Lubrication Grease	Shell Gadus S5 V42P 2.5
